will this home network setup work?

   as per diagrams, im unsure which would work better/ at all.   im about to subscripe to telus internet+tv  but cant really afford any downtime so would like to buy switches and cable...
  • Nighthawk's avatar
    Nighthawk
    6 years ago

    Option 2 will not work since only LAN1 on the ONT is usable. Option 1 is your best bet.

Nighthawk's avatar
Nighthawk
Icon for Community Power User rankCommunity Power User
6 years ago

Option 2 will not work since only LAN1 on the ONT is usable. Option 1 is your best bet.

  • flux1's avatar
    flux1
    Organizer
    6 years ago

    thanks for the response!

    It looks like there has already been a prior fibre installation in this apartment because the white ONT box is already installed.

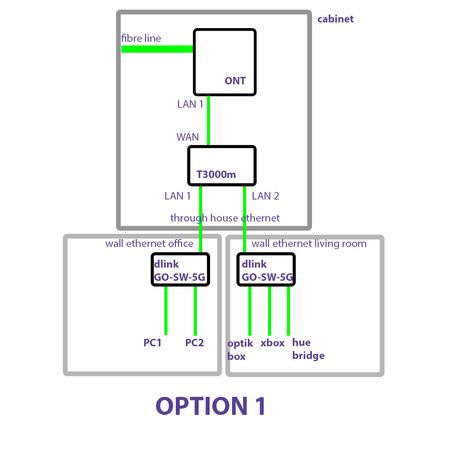

    So with option 1 -



    Would it just be a case of plugging the LAN1 of the ONT into the  t3000m WAN.

    Then the ethernet patch cables for each room into each LAN port of the t3000m

    Then in each room i can attach a switch, to enable more than 1 device to be hardwired



    im mainly confused about getting multiple hardwire connections in each room (computers in office and optik tv and xbox in living room)







    • Nighthawk's avatar
      Nighthawk
      Icon for Community Power User rankCommunity Power User
      6 years ago

      Just set it up like you have in the diagram. I have several switches connected to the LAN ports on the T3200M. All works well.

      • flux1's avatar
        flux1
        Organizer
        6 years ago

        Nighthawk  do you have any recommended switches that are known to work with optik



        does telus supply switches? potentially 2
