Forum Discussion
Solved
PureFibre 1.5 GB but speed remains 1GB
Hi Community, I upgraded my home network to 1.5GB and all my hardware to get the 1.5 GB download speed, but no success. I reviewed some posts on the internet (Reddit, Telus, Unifi), but haven't f...
Ming Wrote: Pure Fibre ==> SFP+ ==> NH20A(Bridge mode) ==> 10GbE RJ45 port ==> Cat8 ==> 10 GbE RJ45 transceives (Amazon) ==> UDM SE(port11) ==> Enterprise 24 ports (2.5GB) ==> my PC
In this case, I should get 1.5 GbE download speed.
If you are able to convince Telus to upgrade you to a NA20A, as you say, RJ45 from the 10Gbps port to the SFP+ WAN port on your UDMPro SE. (You should lock that port at 10Gbps in the controller). I have utilized the SFP+ to RJ45 Transceiver that you mention above with some success. I have had better success with the MikroTik S+RJ10 in my Unifi stack. More expensive that the one you mentioned, however, I know it works with all the Unifi devices that I've plunged them into.
Hope this helps.... Cheers
If you find this post useful, please give the author a "Solution", or mark as "Kudo", if it solves your problem, thank you very much.
Ming Wrote: I upgraded my home network to 1.5GB and all my hardware to get the 1.5 GB download speed, but no success.
I was just reading some of the Unifi EA forums in regards to new firmware for the UDMPro SE. First thing I would do is upgrade to the new UniFi OS - Dream Machine SE 3.0.13. I believe that could solve your entire problem.
Cheers....
If you find this post useful, please give the author a "Solution", or mark as "Kudo", if it solves your problem, thank you very much.
DrPacman Thank you for your solution. It is really helpful.
I also did some homework on Unifi forums and learns a lot from your first post.

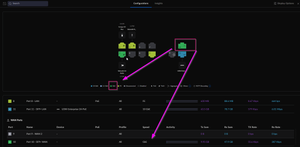

Start with the Unifi OS version, all of my Unifi devices are up to date and my UDM SE is 3.0.13. Those devices are rebooted. UDM SE treats the WAN port (Port 11 SFP+ port) as 1 GbE port. So, the current version of Unifi OS won't fix the problem. I hope Unifi can fix this problem by releasing a new OS version. I want to upgrade to 2.5 GbE from Telus in the future.
Since the UDM SE only accepts 1 GbE / 10GbE at port 11(SFP+) or 1GbE/2.5 GbE at Port 10 (RJ45), I think the best solution, for now, is to ask Telus to get the NH20A.
The idea connection is:
Pure Fibre ==> SFP+ ==> NH20A(Bridge mode) ==> 10GbE RJ45 port ==> Cat8 ==> 10 GbE RJ45 transceives (Amazon) ==> UDM SE(port11) ==> Enterprise 24 ports (2.5GB) ==> my PC
In this case, I should get 1.5 GbE download speed. Correct me if I am wrong.
PS: here is my Unifi post: PureFibre 1.5 GB but speed remains 1GB | Ubiquiti Community
Some people also have the same issue/question.
Ming Wrote: Pure Fibre ==> SFP+ ==> NH20A(Bridge mode) ==> 10GbE RJ45 port ==> Cat8 ==> 10 GbE RJ45 transceives (Amazon) ==> UDM SE(port11) ==> Enterprise 24 ports (2.5GB) ==> my PC
In this case, I should get 1.5 GbE download speed.
If you are able to convince Telus to upgrade you to a NA20A, as you say, RJ45 from the 10Gbps port to the SFP+ WAN port on your UDMPro SE. (You should lock that port at 10Gbps in the controller). I have utilized the SFP+ to RJ45 Transceiver that you mention above with some success. I have had better success with the MikroTik S+RJ10 in my Unifi stack. More expensive that the one you mentioned, however, I know it works with all the Unifi devices that I've plunged them into.
Hope this helps.... Cheers
If you find this post useful, please give the author a "Solution", or mark as "Kudo", if it solves your problem, thank you very much.
